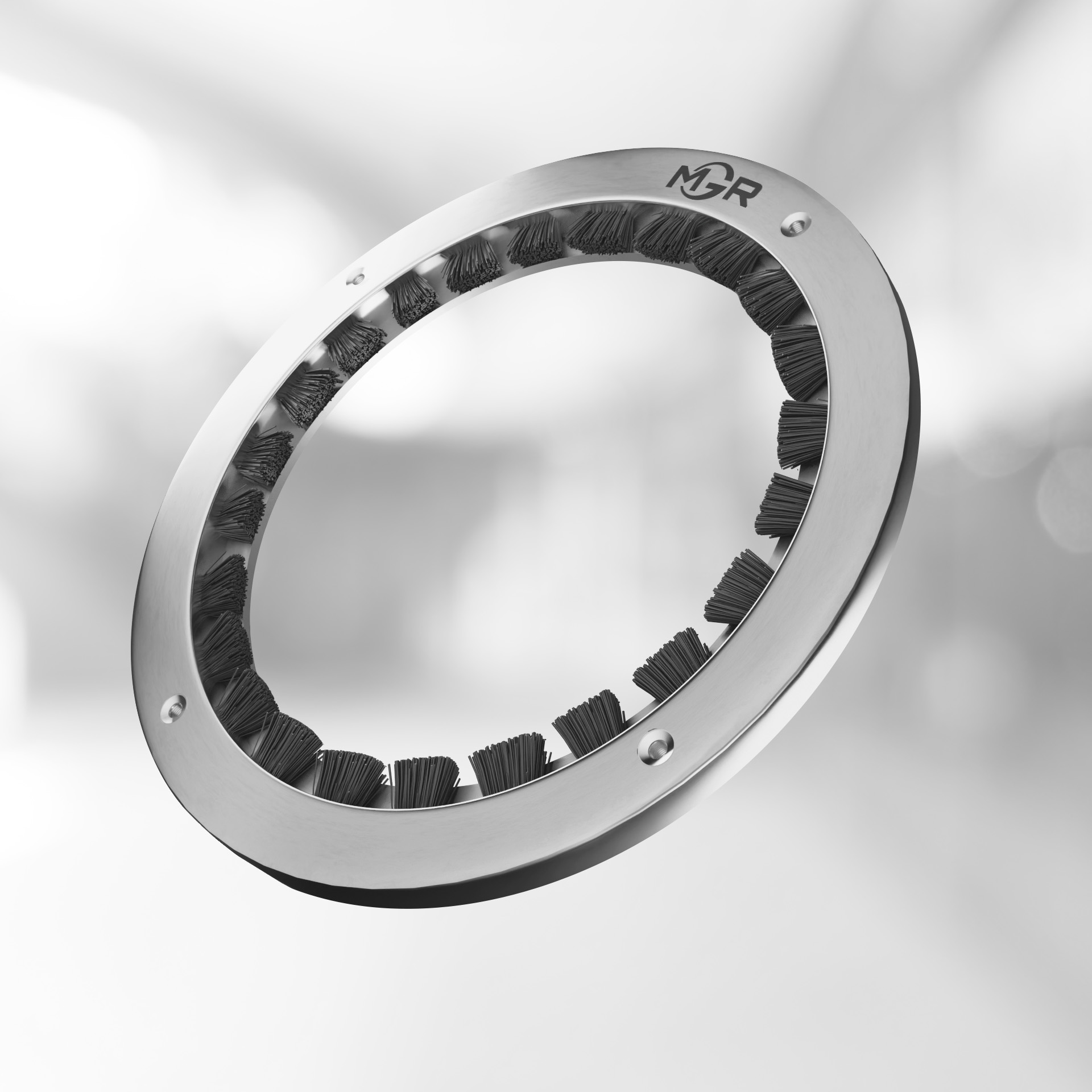

Ultra Slim MGR – Breakthrough Conductive Technology in Bearing Protection

Maximum efficiency in shaft current elimination through advanced material engineering and charge-steering systems.

Modern drive systems require protection that goes far beyond traditional grounding methods. Ultra Slim MGR is a solution based on the latest high-conductivity fiber technology, specifically designed for high-frequency (HF) environments where standard solutions often fail.

Key Innovations of Ultra Slim MGR Technology:

1. Next-Generation High-Conductivity Fibers

At the core of the Ultra Slim MGR ring lies an advanced conductive material with a unique molecular structure. By leveraging the latest breakthroughs in material engineering, we have achieved conductivity parameters significantly higher than those of standard carbon brushes. This translates into lightning-fast system response and instantaneous charge dissipation from the motor shaft.

2. Steered Charge Architecture

Our technology does not rely solely on the material itself, but on a revolutionary geometry of the conductive elements. The Steered Charge system mechanically forces a directional flow of electrons. The charge is "suctioned" from the shaft surface and transported via the shortest path of minimum inductance, eliminating signal reflections and internal interference within the system.

3. Innovative Metal Surface Modification

In the Ultra Slim MGR process, we have eliminated conductive "bottlenecks." Through a proprietary metal processing method, we have created a structure with radically increased efficiency at the interface between the conductive element and the housing. This unique synergy virtually eliminates contact resistance, allowing the full potential of the fibers to be utilized.

4. Monolithic Design and Operational Stability

Ultra Slim MGR is an integrated system that moves away from multi-layer junctions (adhesives and spacers) which act as natural barriers to HF currents. Due to its record-breaking internal efficiency, the system can operate using adhesive-free technology, creating the most reliable and direct current path available on the market.

Why Choose Ultra Slim MGR?

Premium Bearing Protection: Effective elimination of electrical discharges that destroy bearing races (EDM).
Optimized Efficiency: Higher discharge performance with fewer contact points, reducing friction and extending component service life.
Engineering for the Future: A solution designed for the most demanding industrial applications and inverter-driven (VFD) systems.

Ultra Slim MGR defines unexpected technical progress. It is a system where modern materials and intelligent geometry combine to create a new standard of safety for your drive unit.

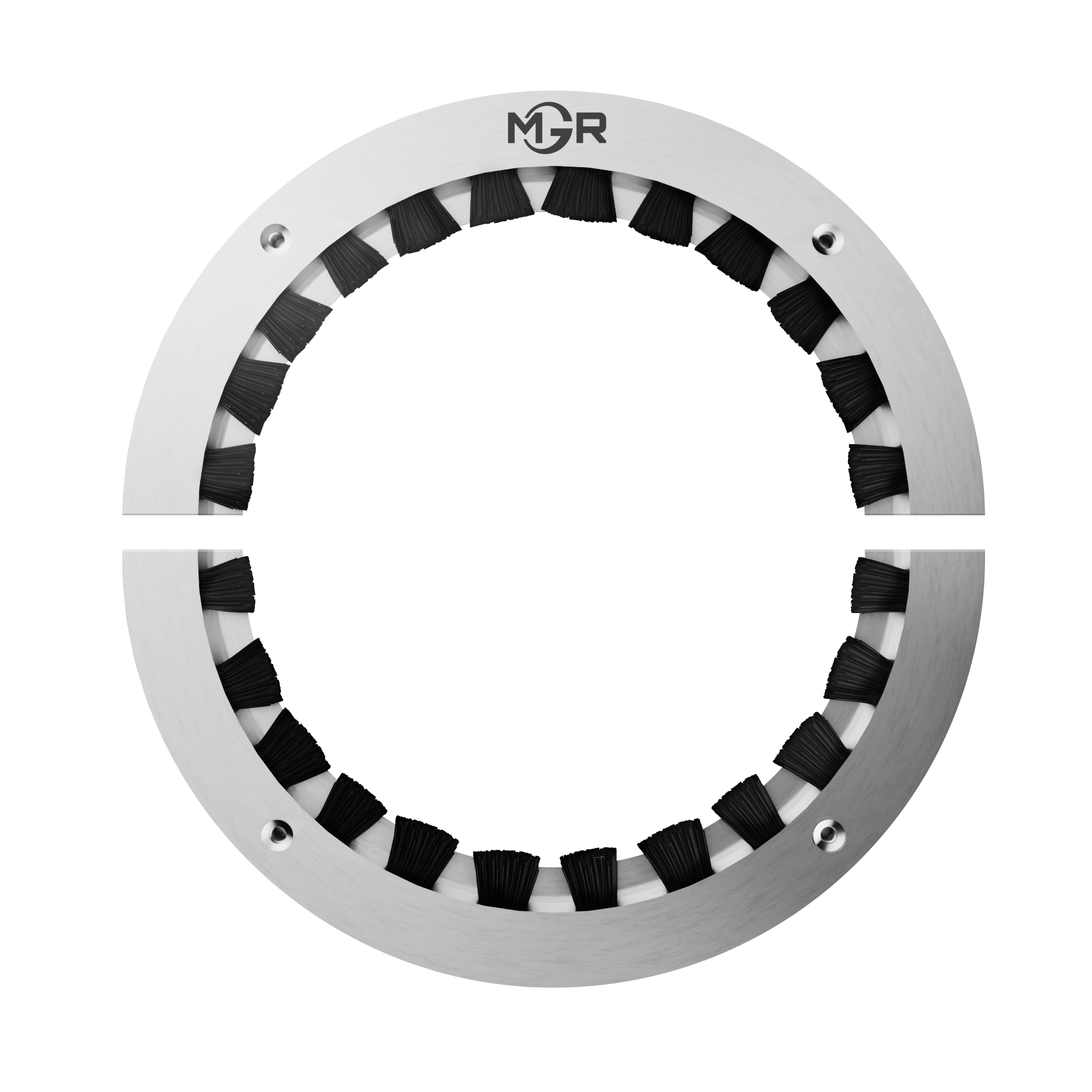

MGR SLIM SPLIT™
